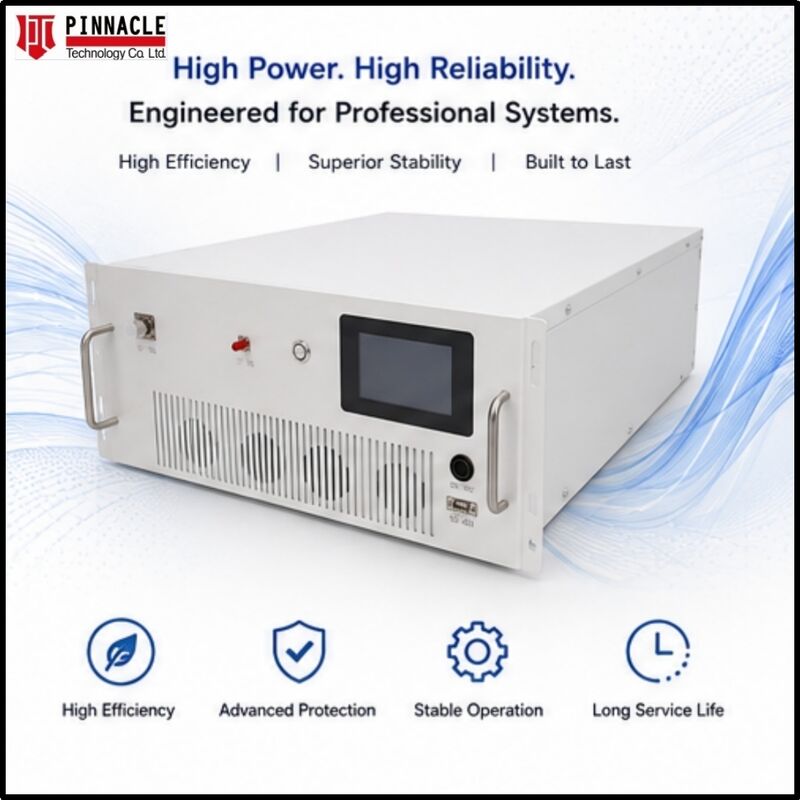

800W High Power 1200-1400MHz RF Power Amplifier
The 1200-1400MHz 800W High Power RF Power Amplifier is engineered for demanding RF transmission systems requiring exceptional output power, stability, and continuous-duty performance. Built with advanced LDMOS power devices and an industrial-grade rack-mounted chassis, this amplifier delivers excellent linearity, high efficiency, and long-term reliability for professional RF applications.
Technical Specifications
| Frequency Range |
1200-1400 MHz |
| Output Power |
800 W |
| Gain |
58-65 dB (Optional) |
| Gain Flatness |
±1 dB |
| Input Power |
0~10 dBm |
| Harmonics |
≤ -15 dBc |
| Spurious |
≤ -60 dBc |
| Output Connector |
N Female / DIN (Optional) |
| Input Connector |
N Female |
| Impedance |
50 Ω |
| Power Supply |
AC220V / AC110V Optional |
| Cooling |
Intelligent Forced Air Cooling |
| Operating Temperature |
-20℃ to +55℃ |
| Protection |
Over Temperature, Over Current, Over Voltage, High VSWR |
| Control |
LCD Touch Screen |
| Chassis |
19-inch Rack Mount |
Key Features
- Frequency Range: 1200-1400 MHz
- RF Output Power: 800 Watts
- 19-inch Rack Mounted Design
- Advanced LDMOS Power Technology
- High Gain
- Excellent Linearity
- Low Harmonic Distortion
- High Power Efficiency
- Intelligent Temperature Protection
- VSWR Protection
- Over Power Protection
- Over Current Protection
- Continuous 24/7 Operation
- Remote Monitoring Available
- Touch Screen Control
- OEM / ODM Supported
Intelligent Protection System
Multiple protection mechanisms safeguard the amplifier against over temperature, high VSWR, over current, over voltage, and power overload, significantly extending equipment lifespan.

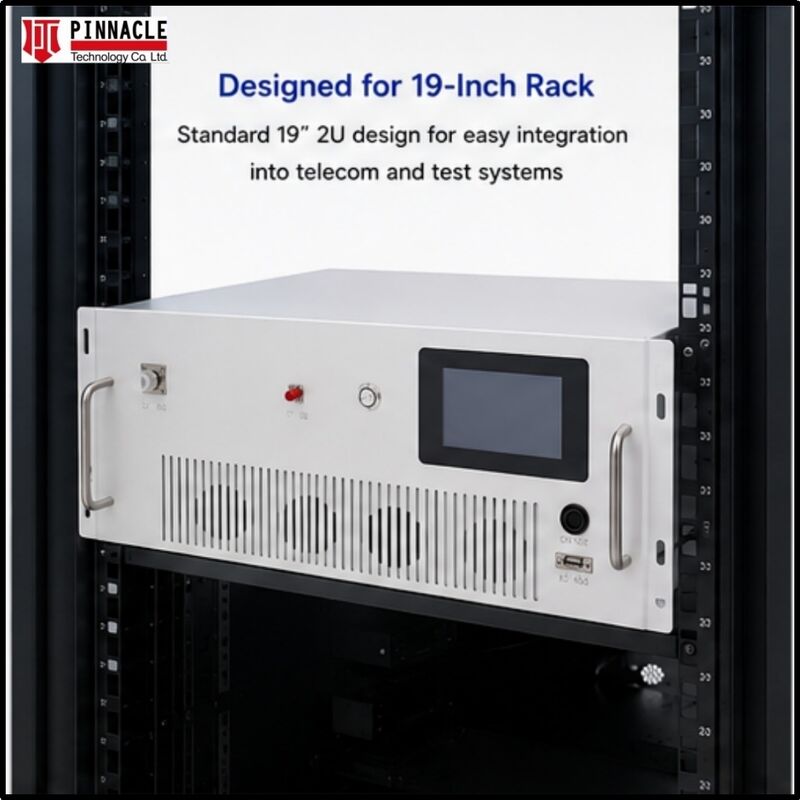

Industrial Rack Mount Design
Designed according to standard 19-inch cabinet dimensions for seamless installation in telecom cabinets, RF laboratories, EMC chambers, broadcast systems, military equipment, and industrial control rooms.
Continuous Duty Operation
Engineered for 24/7 uninterrupted operation, ensuring long-term reliability under heavy workloads.
Applications
Wireless Communication
Signal enhancement for communication infrastructure.
RF Laboratory Testing
Ideal for laboratory research and RF performance evaluation.
EMC Testing
Supports electromagnetic compatibility testing in certified laboratories.
Industrial RF Systems
Provides high-power RF output for industrial automation and wireless control systems.
Scientific Research
Used by universities, research institutes, and engineering laboratories.
Aerospace & Defense
Suitable for professional RF testing and communication integration projects.
Why Choose PTC?
Professional RF Manufacturer
PTC specializes in high-power RF equipment with years of engineering experience.
Factory Direct Supply
No middlemen. Competitive pricing. Fast delivery.
OEM & ODM Service
Customized solutions available for frequency band, output power, gain, interface, cooling system, software, and appearance.
Strict Quality Control
Every amplifier undergoes power test, spectrum test, burn-in test, VSWR test, temperature test, and aging test before shipment.
Global Project Experience
PTC products have been successfully deployed in prison communication projects, government agencies, RF laboratories, telecom operators, EMC laboratories, universities, and industrial wireless systems across Middle East, Southeast Asia, Africa, South America, and North America.
Frequently Asked Questions
Q1: Can the frequency be customized?
Yes. We support custom frequency bands from VHF to 6GHz.
Q2: Can output power be customized?
Yes. Available output power includes 100W, 200W, 300W, 500W, 800W, 1000W, 1500W, and 2000W.
Q3: Do you provide OEM services?
Yes. OEM branding, customized chassis, logo printing, software interface, and packaging are available.
Q4: Can this amplifier operate continuously?
Yes. It is designed for 24/7 continuous industrial operation.
Q5: What protection functions are included?
The amplifier includes over temperature protection, high VSWR protection, over current protection, over voltage protection, and output power protection.
